Full Automatic Laver Processing Plant

> Products > Full Automatic Laver Processing Plant

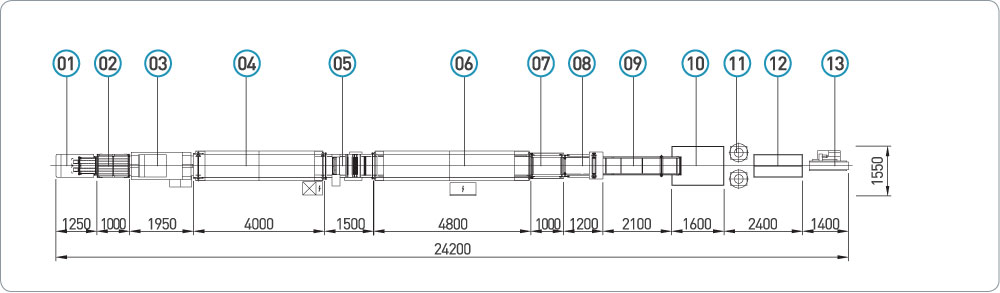

Automatic Laver Processing Plant

F - Automatic Noodle Type Laver Processing Plant

Laver Auto Supply Machine

Model No.ILL-301

  • SizeL1,250xW715xH1,200(m/m)
  • Capacity70,000~100,000 sheet/8hour
  • Power3P, 220~380V, 15kw
  • Features· Supplies each sheet of the stacked laver to the parching machine.
    · Automatic 2 rows supply method
    · Used for regular-size laver and big-size laver

Laver Auto Separator

Model No.IS-V8

  • SizeL1,950xW1,060xH1,690(m/m)
  • Power2P, 220V, 1.2kw
  • Features· Light Source: LED
    · Data save and output function
    · Detects and sorts foreign substances and defective laver such as shell, feather, straw, paint, scrap metal, insect, hole and breakages on the corner or edge of laver, etc. by the cameras

Model No.IS-V6

  • SizeL1,670xW1,060xH1,600(m/m)
  • Power2P, 220V, 0.9kw
  • Features· Light Source: LED
    · Data save and output function
    · Detects and sorts foreign substances such as shell, feather, straw, paint, scrap metal, insect, etc. by the cameras.

Laver Auto 1st Parching Machine

Model No.ILL-810

  • SizeL(2,400~4,000)xW900xH1,150(m/m)
  • Capacity70,000~100,000 sheet/8hour
  • Power4P, 220~380V, 27.75kw
  • Features· Toasts the supplied laver by using quartz heaters and ceramic heaters
    · Adjustable three-level parching temperatures and moving speeds
    · Enhanced thermal insulation
    · Easy to replace heaters
    · Heater installed under the belt

Laver Auto Seasoning Machine

Model No.ILL-325

  • SizeL1,500xW850xH1,200(m/m)
  • Capacity70,000~100,000 sheet/8hour
  • Power3P, 220~380V, 1.35kw
  • Features· Applies seasoning oil and salt when detecting the parched laver
    · Use of the automatic laver movement detecting sensor
    · Dispenses a set portion of seasonings, and applies fine seasoning particles evenly

Laver Auto 2nd Parching Machine

Model No.ILL-820

  • SizeL(4,800~6,000)xW900xH1,150(m/m)
  • Capacity70,000~100,000 sheet/8hour
  • Power4P, 220~380V, 38.55kw
  • Features· Removes moisture from the seasoned laver and gives a twice-grilled effect by drying it with quartz heaters and ceramic heaters
    · Enhanced thermal insulation
    · Easy to replace heaters
    · Centralized control box

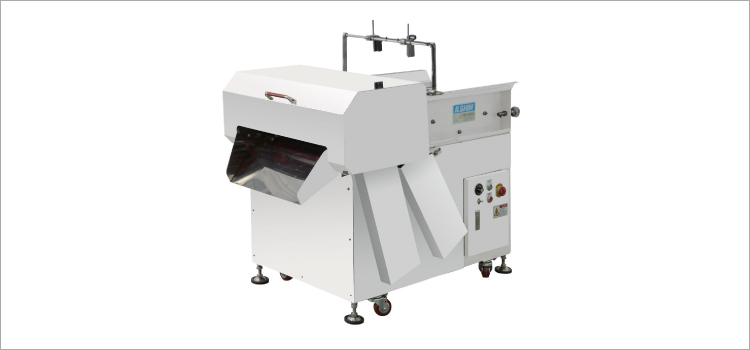

Laver Auto Noodle Type Cutting Machine (Seasoned Laver)

Model No.ILL-225KW

  • SizeL1,320xW850xH870(m/m)
  • Capacity70,000~200,000 sheet/8hour
  • Power3P, 220~380V, 1.5kw
  • Features· Cuts the toasted laver connected directly to cutting machine
    · Automatic 2 rows supply system
    · Cutting width: 4~10 mm
    · Cutting length: 40~100 mm
